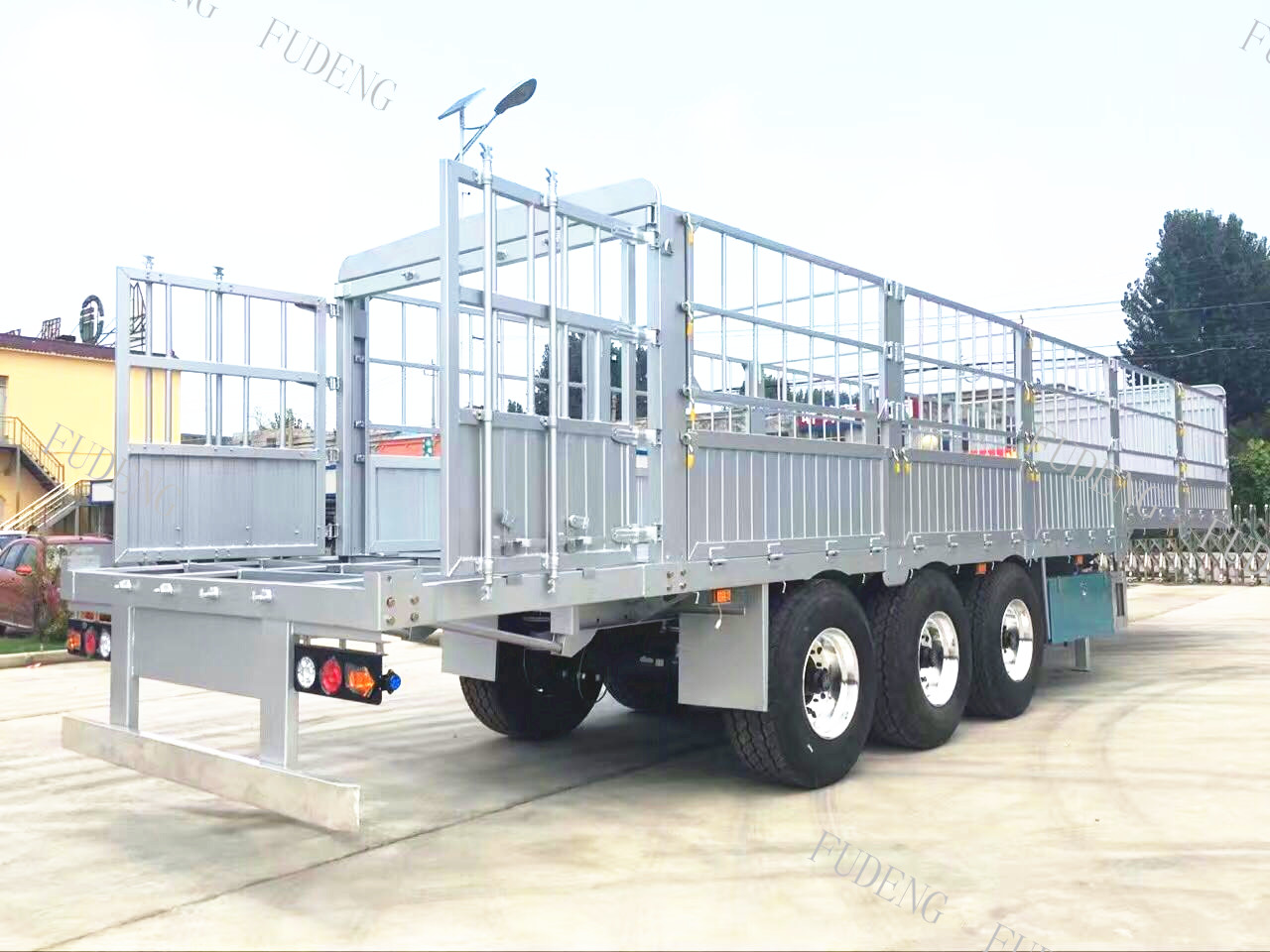

50Tons 3 axle Cattle Transport Grid fence Stake Semi Trailer

Product name

Store House Bar Semi Trailer

fence cargo sheep cattle trailer

Dimensions(L*W*H)12000,11500*2500*3400,3600,3800,4000Interior Dimensions(L*W*H)11850,11350*2340*1800,2000,2200,2400Total Weight40TLoading Capacity(T)34TManufactureSHANDONG LIANGSHAN TONGXIANGMain Framesteel AH60 and TH70type of tire11.00R20 12PR, 11.00-20 12PR, 12R22.5 12PRAxle3SuspensionIndependent stamping steel rigid suspensionKing Pin2" or 3.5" traction pin made in ChinaSpare Wheel CarrierOne set of spare wheel carrier including a riser.Braking Systemdual-loop air-break break systemBrake Air Chamberdouble chamberElectrical System1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)Accessorytwo tooling box with two set of standard trailer toolremarkwe can design model according to client's requirement

Contact information

 Cindy

Shandong Fudeng Automobile.,LTDAddress: Room 1009, Unit 2, No. 6 Building, Dinghao Plaza,

No. 44, Industrial South Road, High-Tech Zone,Jinan,Shandong,China
Email: cindygao@fudengtrailer.com
Skype: fudengtrailer03

Website:  http://chinatrailerfactory.com/
Tel & Whatsapp :86-15689713858
Fax：86 531-68659682

5 ton Left Drive Diesel Light Truck

Specification

Basic Information
INQUIRER:						INQUIRY DATE:	2016/7/2
ADDRESS:						TEL/FAX:
PORT OF LOADING:			TIANJIN PORT CHINA			PORT OF DESTINATION:
DATE OF SHIPMENT:			45DAYS AFTER DOWNPAYMENT RECEIVED			DATE OF VALIDITY:		2016/12/31
Payment Terms
PAYMENT TERMS:			30 % of total amount paid by T/T as down payment , 70% paid by T/T before delivery
INSURANCE:			covered by the buyer for  110% of Commodity Value  against ALL  Risks.
Products Specification
Product Mode:  M37   Model Year:2015;  left hand driving
Driving type				4×2
Dimensions (LxWxH/mm)
Wheel base(mm)				3400
Loading(kg)				5000~10000
Max. speed(≥ km/h)
Engine				YC4D140-33, EURO II, mechanic fuel system
Clutch				Single-plate, dry, diaphragm spring
Gearbox				FAST 8JS85F; 8 speeds, Manual
Front axle				3.6 Ton 1094# alxe; drum brake, Automatic adjustable beam
Rear axle				10Ton 153 rear axle, single reduction; reduction ratio i=6.833
Steering				Hydraulic power steering;
Suspension				front / rear parallel springs; 9/10+8
Frame				250(8+6)
Brake system				Air compressed drum brake, energy storage spring brake; without ABS
Fuel tank (L)				280 Lsteel with locking key
Tyer				8.25R20-14*6
Electric device				24V,single wire ,negative grounded
Cabin				low roof, day cab, Manual window & maual rear view mirror, Manual A/C without heater, mechanic tilting cab;
Dump box				400*2200*800mm; 7 CBM;  Bottom:4 mm, side:3 mm, 2x110 middle-lift cylinder
outside dimension (mm)				5990*2350*2900
Contact information				Cindy  Shandong Fudeng Automobile.,LTDAddress: Room 1009, Unit 2, No. 6 Building, Dinghao Plaza, No. 44, Industrial South Road, High-Tech Zone,Jinan,Shandong,China Email: cindygao@fudengtrailer.com Skype: fudengtrailer03 Website:  http://chinatrailerfactory.com/ Tel & Whatsapp :86-15689713858 Fax：86 531-68659682

China tri-axle enclosed cargo box semi trailer for sale , box or van truck semitrailer

2/3 axles Box/Van Semi truckTrailer
Model	PLYBT
Wheel Base	1310 (mm)
Tyre Specifications	12R22.5
No. Of the Tyres	12 pcs  ISO Certificated
Axle	13Tonnage
No. Of the Axles	3 pcs
Landing Gear	28 ton capacity Fuwa with static capacity of 80T
Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin	2’ and 3.5’ inter-changeable traction pin
Departure Angle	15
Front/Rear Overhang	1900 mm
Material of the Main Beam	Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air  chamber.
Colour	As the buyers’ request
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Dimension	13000x2500x3800 mm
Net Weight	7T
Side Wall Thickness	3mm-5mm
Spare tire carrier	1 set
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools

Contact Information

Cindy

Shandong Fudeng Automobile.,LTDAddress: Room 1009, Unit 2, No. 6 Building, Dinghao Plaza,

No. 44, Industrial South Road, High-Tech Zone,Jinan,Shandong,China
Email: cindygao@fudengtrailer.com
Skype: fudengtrailer03

Website:  http://chinatrailerfactory.com/
Tel & Whatsapp :86-15689713858
Fax：86 531-68659682
