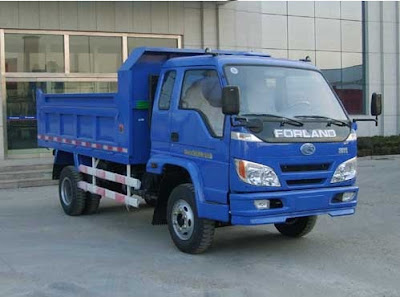

| Vehicle model | BJ3073DCPFA-S4/3052AEL34100L34-1 | |
| Cabin model | right
hand driving，single row，flat head，D1900 |
|
| Emission Standard | Euro-II | |
| Whole vehicle main dimensions |
Overall dimensions （L×W×H）（mm） | 6130×2200×2570 |
| Inner dimensions of the cargo body （L×W×H）（mm） | 4200×2000×800×5MM | |
| Driving type | 4*2 | |
| Wheel base （mm） | 3450 | |
| Wheel track (front/rear)（mm） | 1700/1630 | |
| Weight data |
Curb weight（kg） | 4790 |
| Rated payload（kg） | 5000 | |
| seating capacity | 3 | |
| Whole vehicle main performance 性能参数 |
Max. speed（no load）（km/h） | 90 |
| Maximum gradeability (%) | ≥25% | |
| engine |
Model | phaser135Ti (Euro II) |
| type | vertical/in-line/water
cooling/four stroke/ intercooled supercharger |
|
| Displacement（L） | 3.99 | |
| Rated Power(kw/rpm) | 101/2600 | |
| Gearbox | Modle | WLY6T120 |
| Rear axle | Main reduction ratio | 5.286 |
| Steering gear | power steering | |
| tire type/number | 7.50-16/6+1 | |
| Brake system |
Service brake | drum type,air braking |
| Parking brake | central drum type braking | |
| Rate Voltage（V） | 24 | |
| Capacity of fuel tank（L） | 120 | |
| standard
configurations |
spare
tire,electric controlled flameout,adjustable steering wheel,heater |
|
| selective configurations | air-conditioner | |
