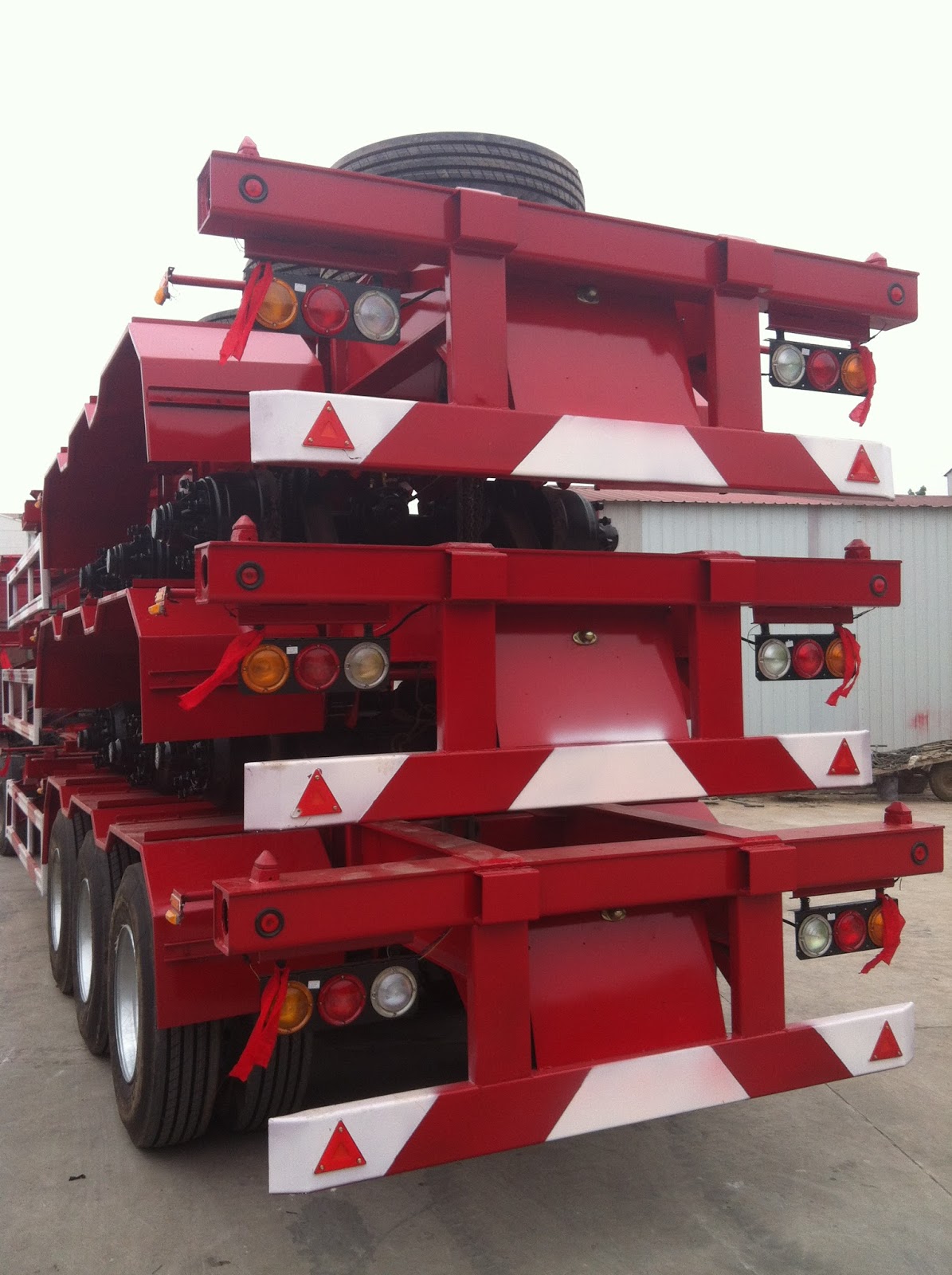

China Supplier 20ft 40ft Container Skeleton Semi Trailer With 3 Axle For Sale

China Supplier 20ft 40ft Container Skeleton Semi Trailer With 3 Axle For Sale

Specifications
Dimension	112450x2490x1557(40ft) or 7160x2490x1557(20ft)
Payload	35T-75T
Tare weight	About  4.5T--8.5T
Twistlock	4, 8, 12 units or customized
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO/40HQ container

skeleton trailer with twist lock, tri axle semi trailer, semi trailer with twist lock blueprint.

Before Manufacturing, We will send a design drawing to our customer for him to check and confirm.

We can design

• 20ft, 40ft container trailer
• 4, 8, 12 units twistlocks
